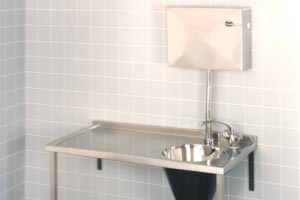

Heron (imperial type) Manual stainless steel sluice and work surface.



    Click here for technical specifications ->

    • Sluice hopper can be on the left or right hand side
• Overall size is 1067 x 530 x 900 mm high
• The hopper diameter is 355 mm




Standard top entry unit for exposed supply. Up stand to the rear and anti drip edges to the front and both sides.

Comes complete with stainless steel side entry cistern, stainless steel flush pipe, chrome plated wrist lever action mono bloc mixer tap with single swivel nozzle. Pair of bearer brackets and stainless steel front support legs with adjustable feet and a stainless steel 75 mm multi adaptable P trap.

Custom built units to suit a particular requirement, individual dimensions and/or specifications. For example up stands to the ends of the units, special lengths, widths or shapes, floor and wall cabinets or a combination of the units, rear flush pipe connection foe concealed cistern.

Optional Extras

• Stainless steel 75 mm multi adaptable S trap
• Stainless steel 75 to 110 mm adaptor
• Stainless steel 110 mm multi adaptable P or S traps
• Plastic cistern for economic top entry or for concealed duct mounting locations
• Victory toggle action flush valve in place of the cistern
• Bottle washing jet kit factory fitted in to the hopper and with a wall mounted on/off valve
• Wrist lever chrome plated mono bloc mixer tap with retractable hand spray.
• Inset Models
